Oxy-Gas Combustion System
Reduction of
energy consumptions
Reduction of
the space required
Pollution reduction
NOx reduction
Appropriate solution for special glasses (borosilicate glasses, fibre glasses, etc.)

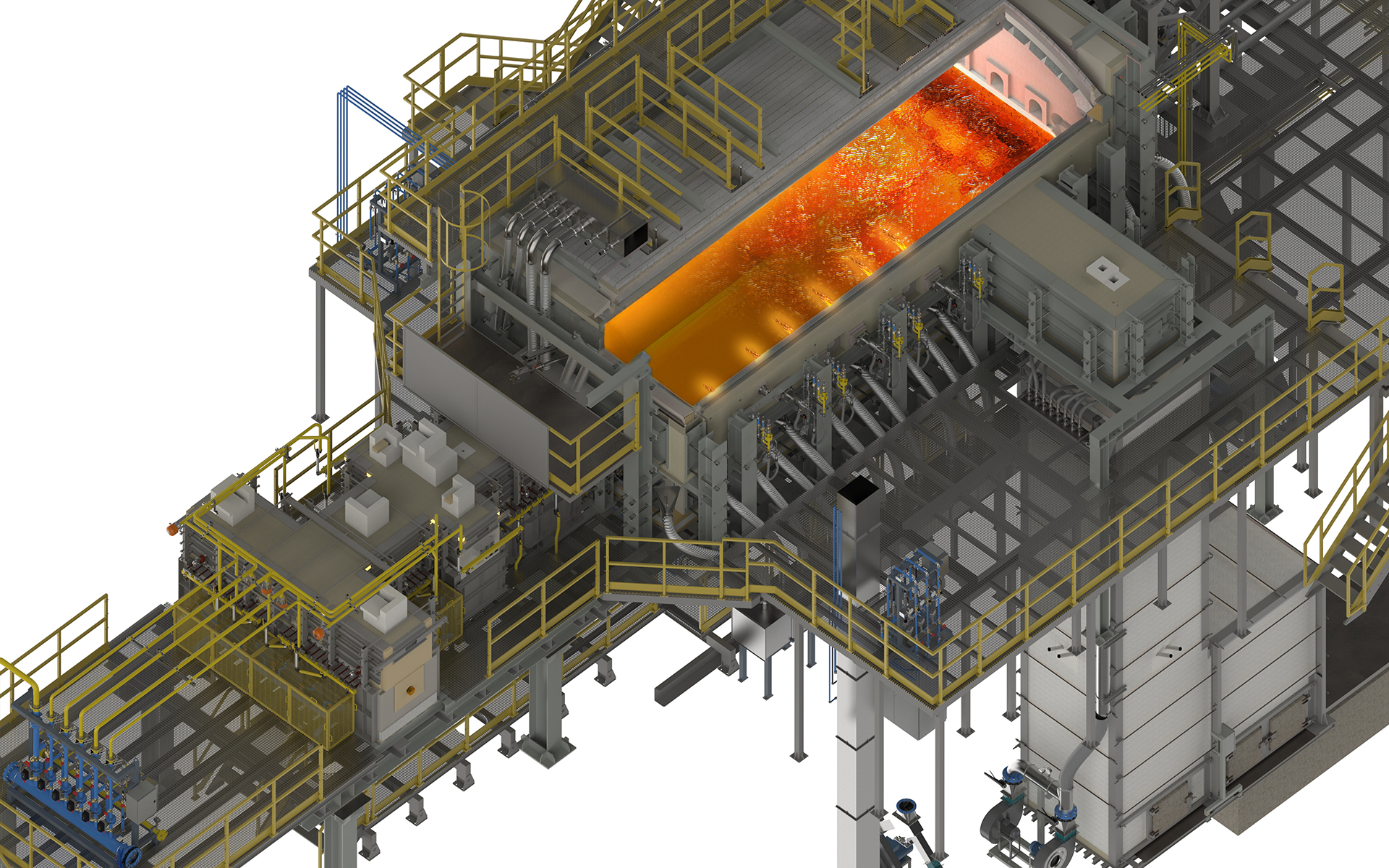

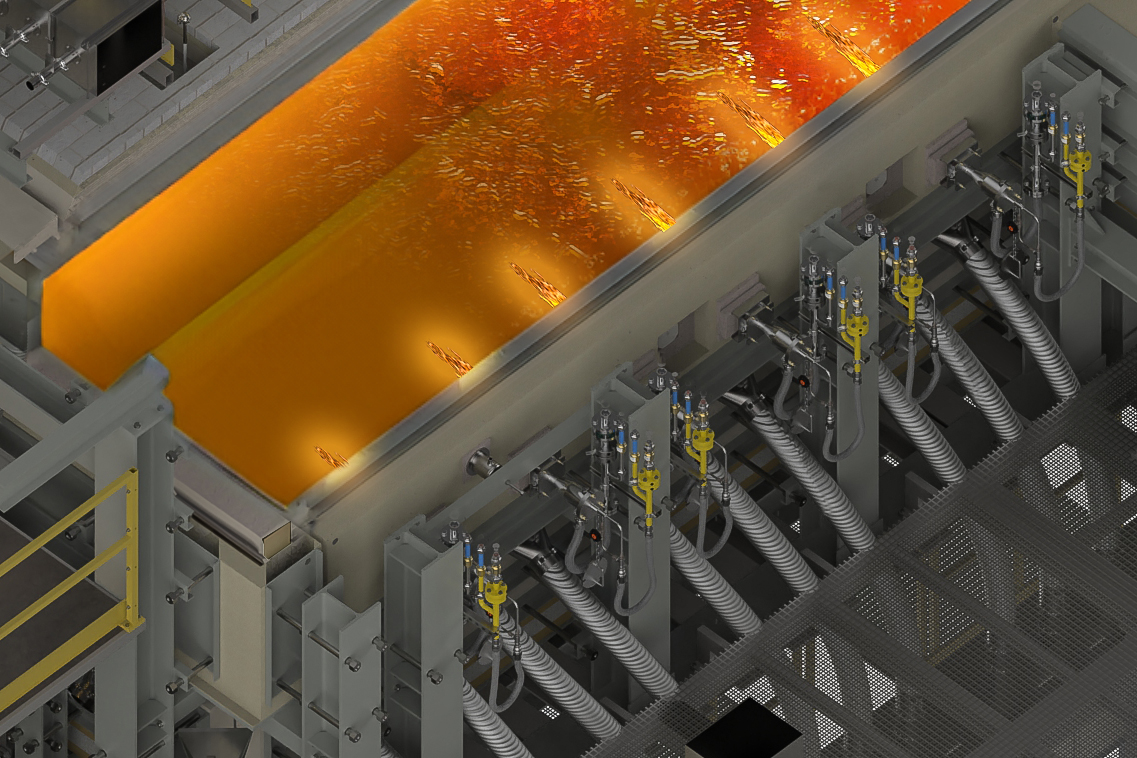

Oxy-fuel combustion systems are now a practical and well tested application for use in glass melting furnaces.
Glass Service has developed the technology and have supplied a number of complete oxy-fuel combustion systems to glass manufacturers.
Oxy-fuel combustion technology can be used for special glasses as well as for standard soda lime glass with several advantages:
- Reduced of energy consumption
- Increased glass pull
- Reduction of spares required for the furnace
- Reduced pollution
- Reduced NOx
- Reduction of carryover from the raw materials
- Easy to achieve the high temperatures required for special glasses, such as borosilicate glasses, etc.
- Lower capital investment compared to regenerative or recuperative furnaces as no regenerators or metal recuperators are required
- Lower investment in refractory materials and lower refractory installation cost
- Continuous firing (compared with regenerative furnace)
- Easy control and adjustment of the temperature profile along the furnace longitudinal axis
Glass Service combustion systems can operate with several oxygen sources:
- Cryogenic liquid tank
- VPSA producers
- VSA producers
Glass Service oxygen skid can operate either at high pressure
or low pressure input (VPSA and VSA) for instance, 500mbar.

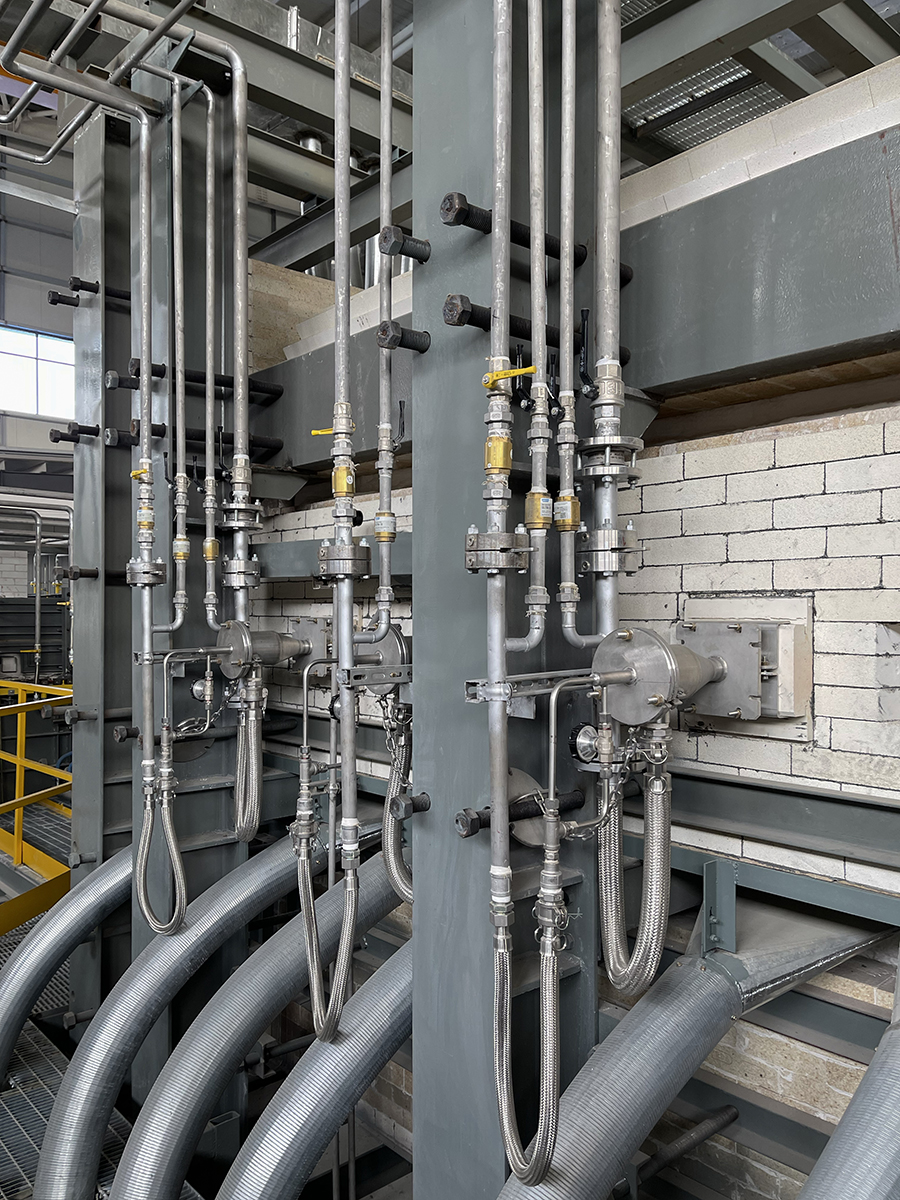

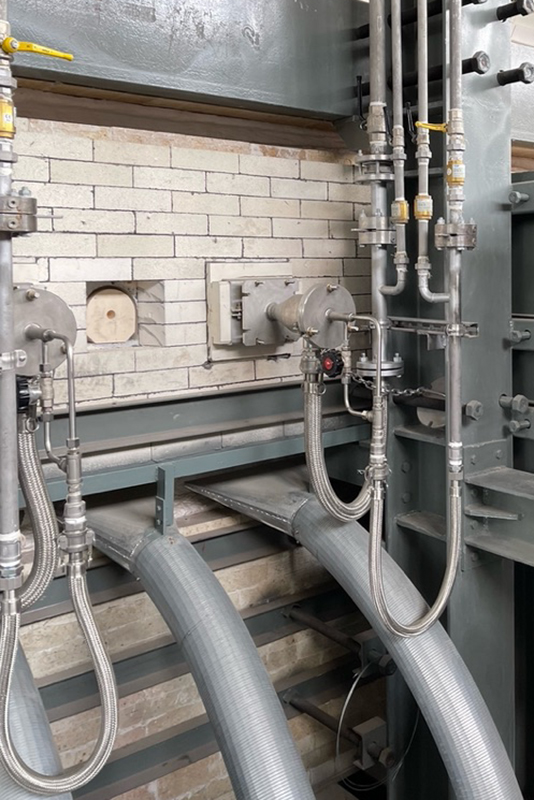

The combustion system is consists of:
- Gas pressure regulator and safety equipment (safety shut off valves, pressure switch, etc.)
- Oxygen pressure regulator and safety equipment (safety shut off valves, pressure switch, etc.)
- Gas and oxygen flow control for each burner
- Compressed air burner cooling
- Burners
- Control system
The gas and oxygen flow control must be very accurate and Glass Service have developed a high precision flow control system using Vortex instruments to controls the oxygen and gas flows. The system takes into consideration variations in the temperature and pressure and compensates for variations at each burner.

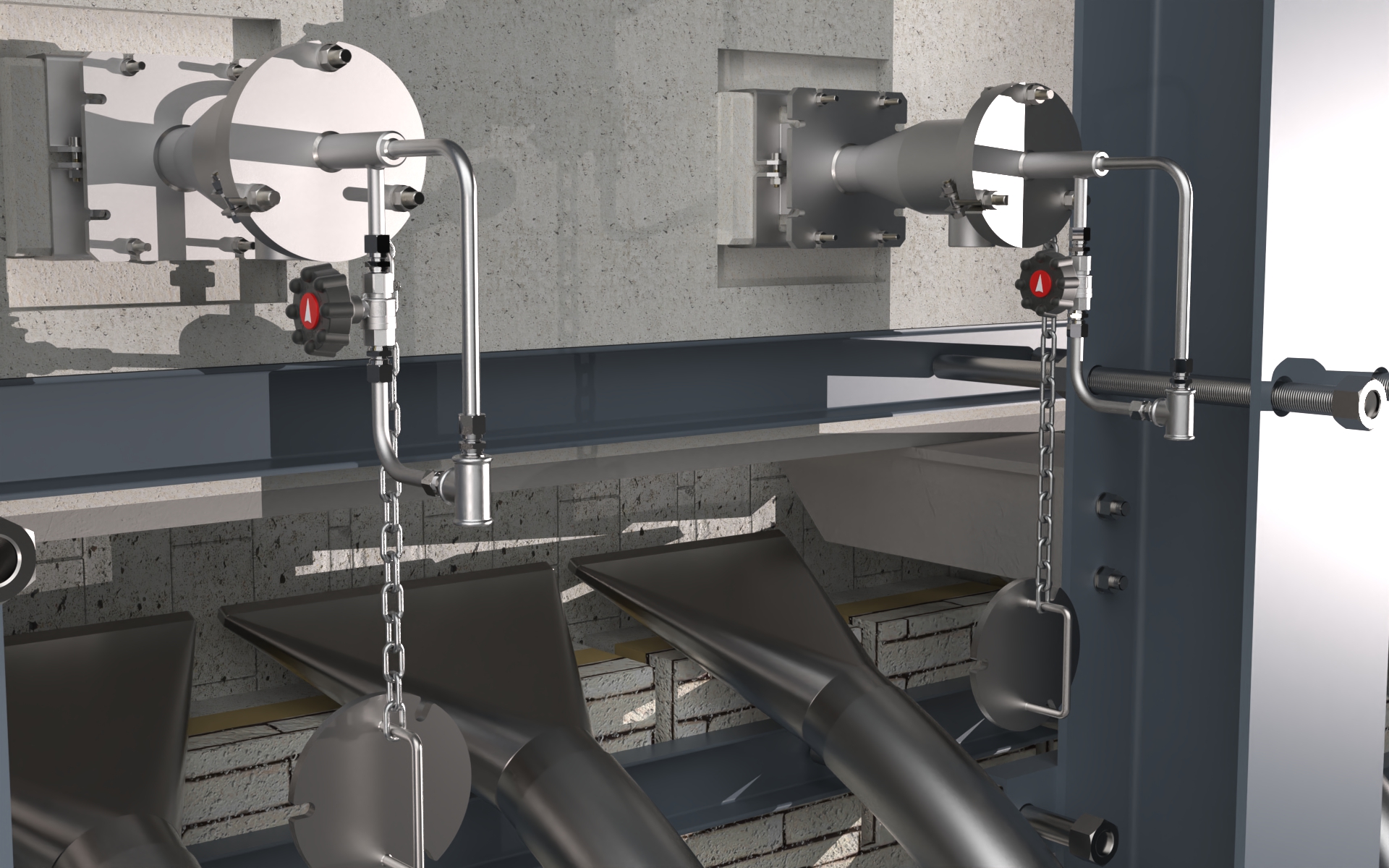

Burners
- High temperature operation
- Low momentum burners
- High flame radiation in visible spectrum
- Stepless external regulation of the flame length
- Easy removal of burners for maintenance

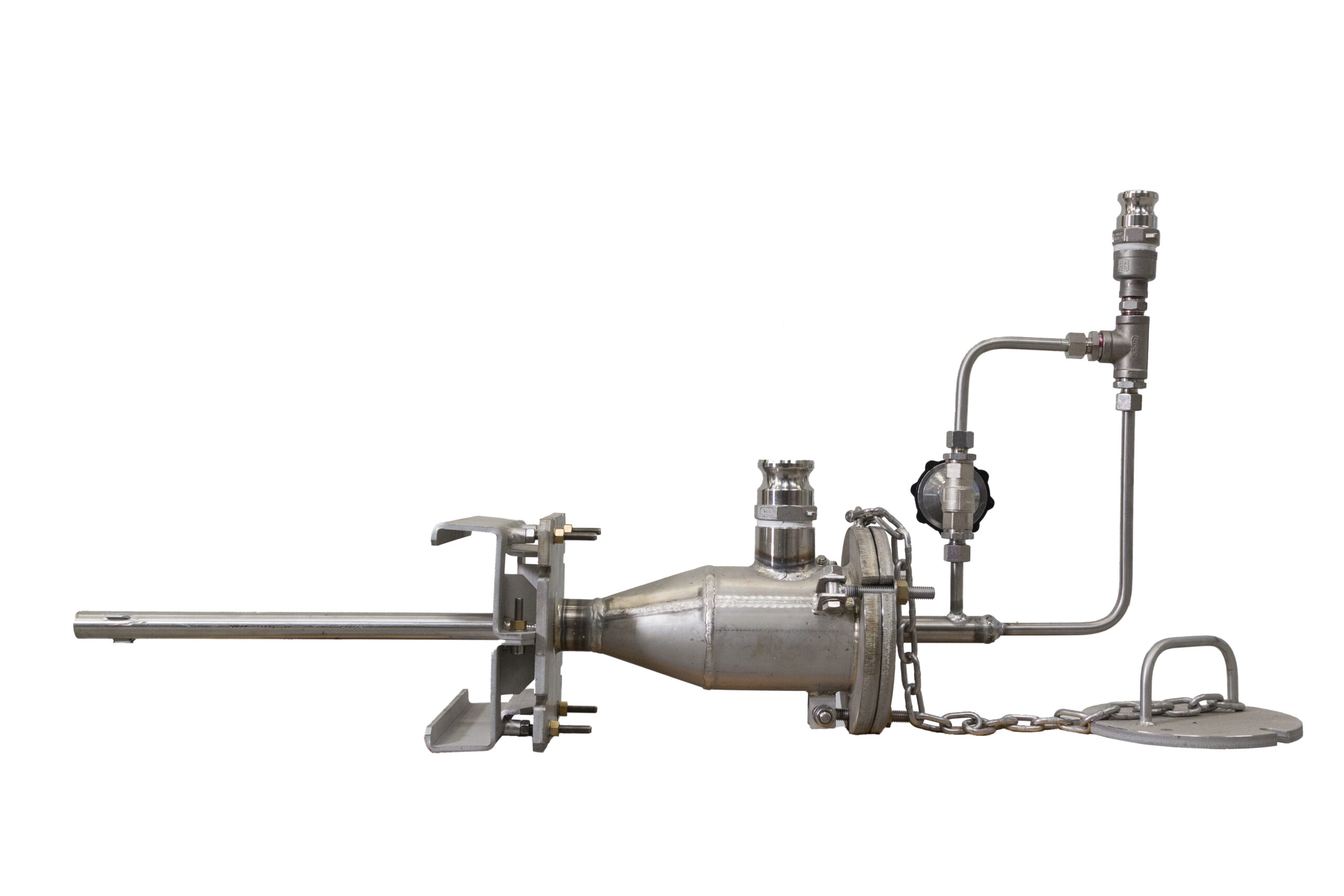

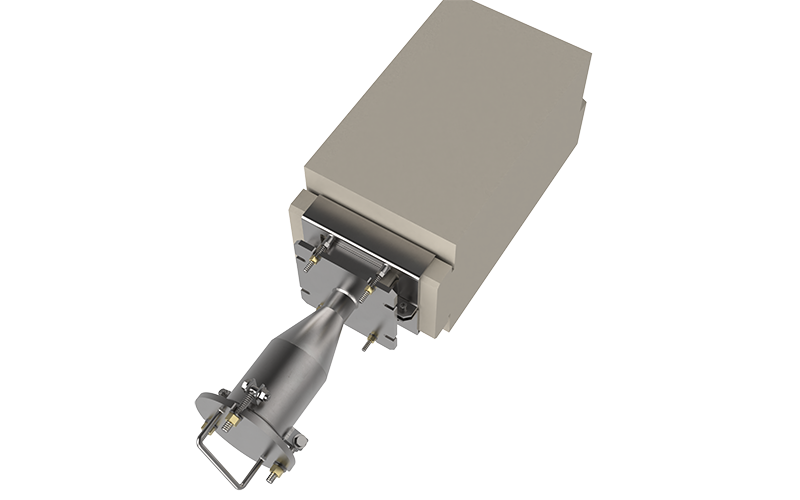

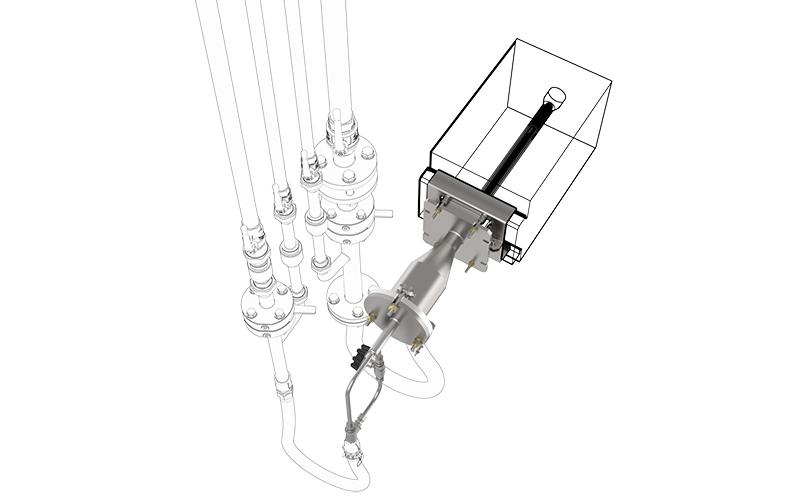

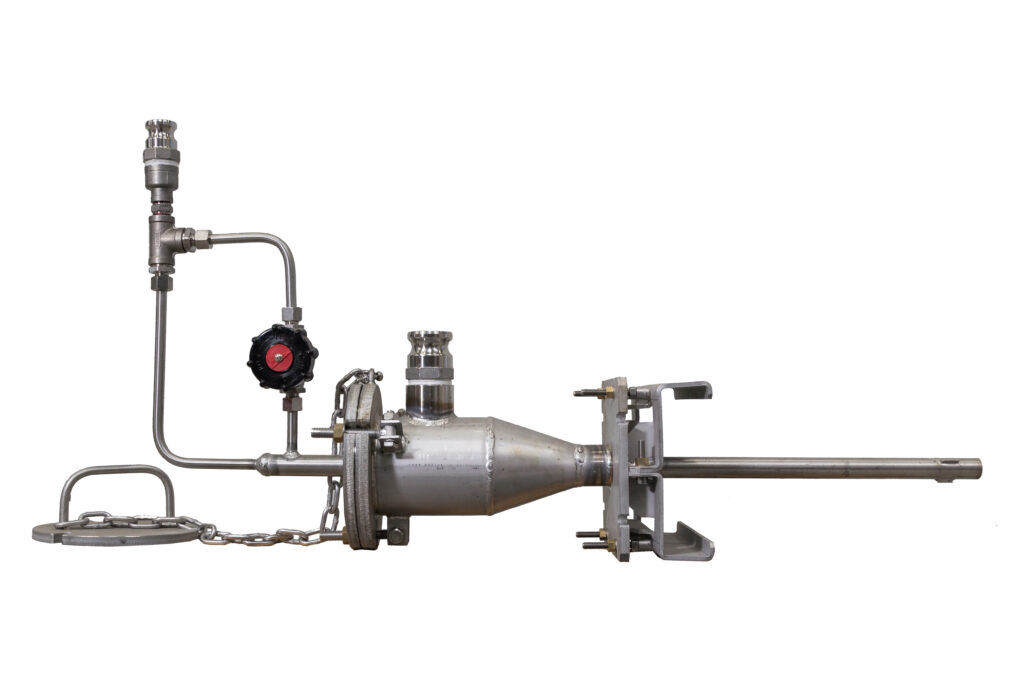

Glass Service design and supply oxy fuel burners for low pressure gas and oxygen and for low and high flow rates.Â
 All Glass Service burner designs have low momentum flames without any peak temperature. This special design feature for glass melting furnaces avoids localised high temperatures on the furnace crown and the potential to create rat holes.
The burner radiation is concentrated in the visible spectrum range improving the radiated energy transmission to the melted glass and the furnace efficiency.
Burners have the following characteristics:
Low flame momentum
High flame radiation in the visible spectrum
Stepless regulation of the flame length to give the correct flame length to suit the furnace
Easy removal for maintenance
Compressed air cooling for burner shut off
Easy removing cam lock pipe connection
Burners Data
- Power - From 200 to 600 kW
- Pressure input max flow natural gas - 100 mbar
- Pressure input max flow oxygen - 100 mbar
- Regulation flame length - From 0,5 to 2 m
- Natural gas/oxygen ratio - From 2 to 3
