Mixer Features
The mixer is composed of a cast iron shell with a tailor made venturi insert inside, calibrated according to the design specifications. Combining the Venturi principle and the use of a regulator needle allows for precisely the correct amount of gas to be pulled in with the force of airflow and the resulting mixture is sent to the burners. The proper air/fuel ratio is set initially by the valve built into the mixer. The main features of the mixer are:
- Low pressure loss
- Multiple size combinations
- Flange connection to facilitate inspection, cleaning and regulation of capacity
- Compact and reversible design
- Solid construction
- High reliability due to the cast iron construction
- Orientation-free installation
- Built in gas adjustment valve
- Easy disassembly for fast maintenance and scalability
- Constant combustion ratio

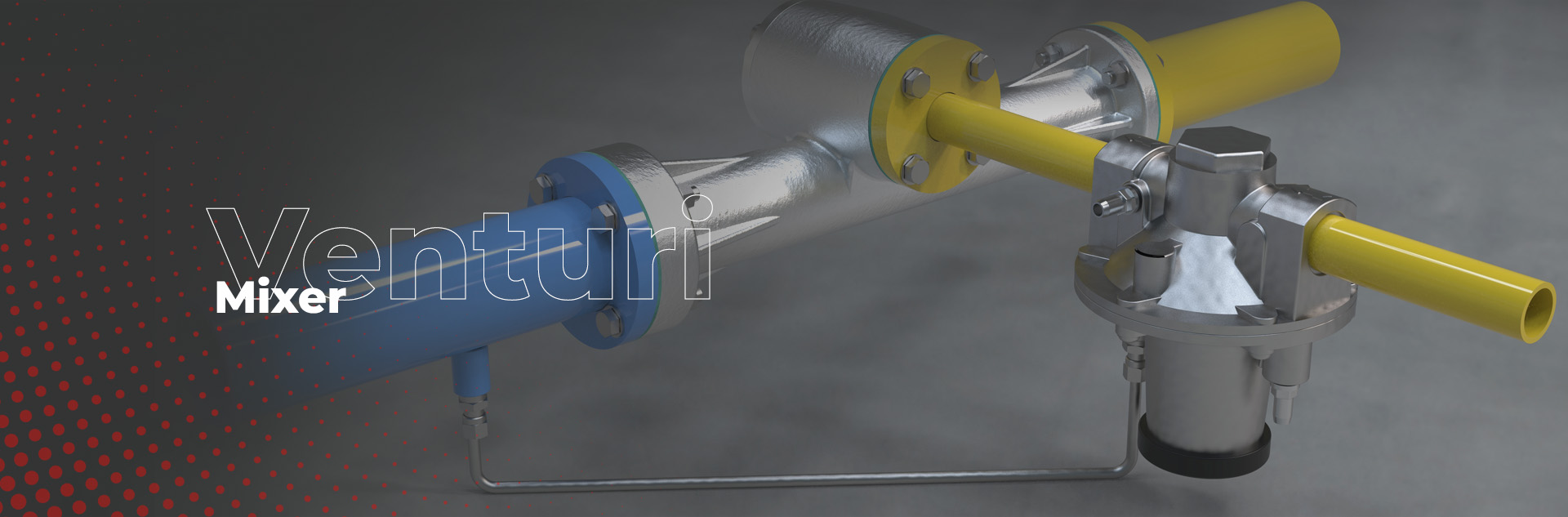

Venturi Mixer
GENERAL 3D VIEW | DETAILS | MATERIALS
The mixer body and the mixing chamber are machined from a cast piece, while the insert is made of Aluminum Anticorodal.
The calibrated nozzle, made in brass, is also completely customizable.
PRINCIPLE OF OPERATION
The energy of air passing through the venturi throat generates a depression with a consequential suction effect that forces gas to exit from the gas nozzle. The air/gas mixture then recovers pressure in the mixing chamber at the expense of velocity of the flow.
The correct amount of gas is controlled by the pin regulation valve. Unprecedented precision is possible thanks to a two-fold solution: an interchangeable nozzle allows for the easy adjustment of internal diameter, while an adjustable pin position allows for accuracy of gas
DESIGN CRITERIA
Customarily, the air inlet pressure should be 3.5 times the mixer pressure. This ratio ensures enough airflow energy to pull the correct amount of gas into the mixer. Another way to ensure that the system functions correctly is to consider a pressure drop in the venturi mixer of at least 66% of the entire system.
After testing, we have verified that with a ratio between (air inlet pressure)/(mixer pressure) of 3.5:1, the pressure drop in the venturi is 71%, which aligns to the second criteria. A definitive relationship of about 2.5:1 should also be maintained between mixer air orifice area and burner exit port area.
INSTALLATION
Installing the Glass Service venturi mixer is easy and fast: 4 screws for each flange and the mixer is ready to work.
General Dimensions
(mm) and Sized Available
| Size | H | L | P |
|---|---|---|---|
|
DN40 |
142 |
325 |
124,5 |
|
DN50 |
142 |
375 |
143,3 |
|
DN65 |
154,5 |
425 |
163,5 |
|
DN80 |
193,5 |
605 |
185 |
| Size | POWER (kW) | MODEL | CODE | INNER INSERT Ø [MM] | SPUD DRILL Ø [MM] |
|---|---|---|---|---|---|
|
DN40 |
98 |
G-MAIGLA00065MV |
MV2-40 |
20 |
8 |
|
DN50 |
158 |
G-MAIGLA00066MV |
MV2-50 |
26 |
12 |
|
DN65 |
265 |
G-MAIGLA00067MV |
MV2-65 |
34 |
18 |
|
DN80 |
366 |
G-MAIGLA00069MV |
MV2-80 |
40 |
22 |
Zero Governor
Ratio Regulator
Zero governor works by maintaining atmospheric pressure, known as zero pressure, at the regulator outlet. Increased air flow through the venturi mixer increases suction on the gas line. In order to maintain its zero outlet pressure, the regulator automatically opens its gas valve to increase the amount of gas flowing into the mixer. When the air flow is reduced, suction decreases and the regulator valve closes in order to maintain zero pressure.
INSTALLATION TIPS
To avoid combustion instability, it is strongly recommended to:
- Not install elbows at the exit of the mixer
- Leave minimum distance of 5 times the tube diameter between the venturi mixer and the burner
As shown in the image below the venturi mixer can be installed in symmetrical configuration and, according to the gas arrival line, has interchangeable gas entrance.
MAINTENANCE
Designed for easy use, the system meets the needs of those who use it, so the maintenance or the calibration phase is very fast. Remove a few screws and all the relevant parts are available.
